SXHD Series High Efficiency Precision Cutting Unidirectional Loop Type Abrasive Sand Wire Cutting Machine for Non-Conductive Materials

SXHD SERIES UNIDIRECTIONAL LOOP TYPE ABRASIVE SANDWIRE CUTTING

This advanced machine represents our latest innovation, delivering significant improvements in cutting efficiency and surface finish quality. The unidirectional sanding wire operates at high speeds, simultaneously cutting and grinding while allowing for cooling with working fluid. Designed for ease of operation with minimal vibration, it's ideal for processing hard, brittle materials including graphite, jade, and silicon crystals.

Technical Specifications

Model	SXHD-7732	SXHD-7740	SXHD-7750	SXHD-7763
Worktable Size (mm)	380×600	410×710	596×880	720×1260
Y Axis Travelling (mm)	280	380	430	800
X Axis Travelling (mm)	320	400	550	630
Max. Loading Capacity (kg)	300	400	500	750
Max. Cutting Thickness (mm)	300-600 (customized as per actual requirement)
Max. diameter of rotating fixture (optional) (mm)	φ300	φ400	φ500	φ600
Max. load capacity of rotating fixture (optional) (kg)	50	100	150	150
Abrasive sand wire specification (mm)	0.5-0.8
Abrasive sand wire running speed (m/s)	≥40
Cutting materials	non-conductive materials such as graphite, jade, ceramics, etc
Working fluid	pure water or general tap water, emulsion (determined according to the material)
Tension control	precision pneumatic control
Machine total power (kW)	≤3
Machine Size (mm)	1660×1330×1700	1830×1490×1800	2010×1800×1900	2200×2200×1900

Application Overview

Specifically engineered for precision cutting of non-conductive materials, this system targets materials including graphite, ceramics, and acrylic (Plexiglass). It is also suitable for high-precision cutting, shaping, and contouring of jade and various non-metallic insulating materials. The machine effectively addresses industry challenges where traditional machine tools struggle with non-metallic, non-conductive materials, making it ideal for mold making, precision component machining, new material R&D, and craftwork production.

Performance Highlights

The equipment operates on standard 380V industrial power with a high-torque motor. It provides precise X/Y/Z-axis positioning and supports fine-angle cutting adjustments. Cutting speeds reach up to 6 m/min, significantly enhancing production efficiency. The complete product line supports customization of dimensions, load capacities, and travel ranges to meet specific production line requirements.

SXHD Series Abrasive Sandwire Cutting Machine Overview

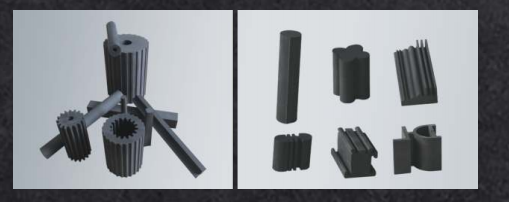

SXHD Machine Technical Diagram and Specifications

SXHD Machine Operation and Cutting Process

SXHD Machine Production Environment Setup
